Cardputer Adv - GPS#
Configuration#
More information GPS modules can be found here.
Default Pins: RX=15 TX=13
Alternative Pins: RX=33 TX=32 follow wiring shown here
Items Needed#
Pins#
| GPS | Cardputer Adv |
|---|---|
| VCC/5V - 1 | 5V |
| RX - 2 | G13 |
| TX - 3 | G15 |
| GND - 4 | GND |

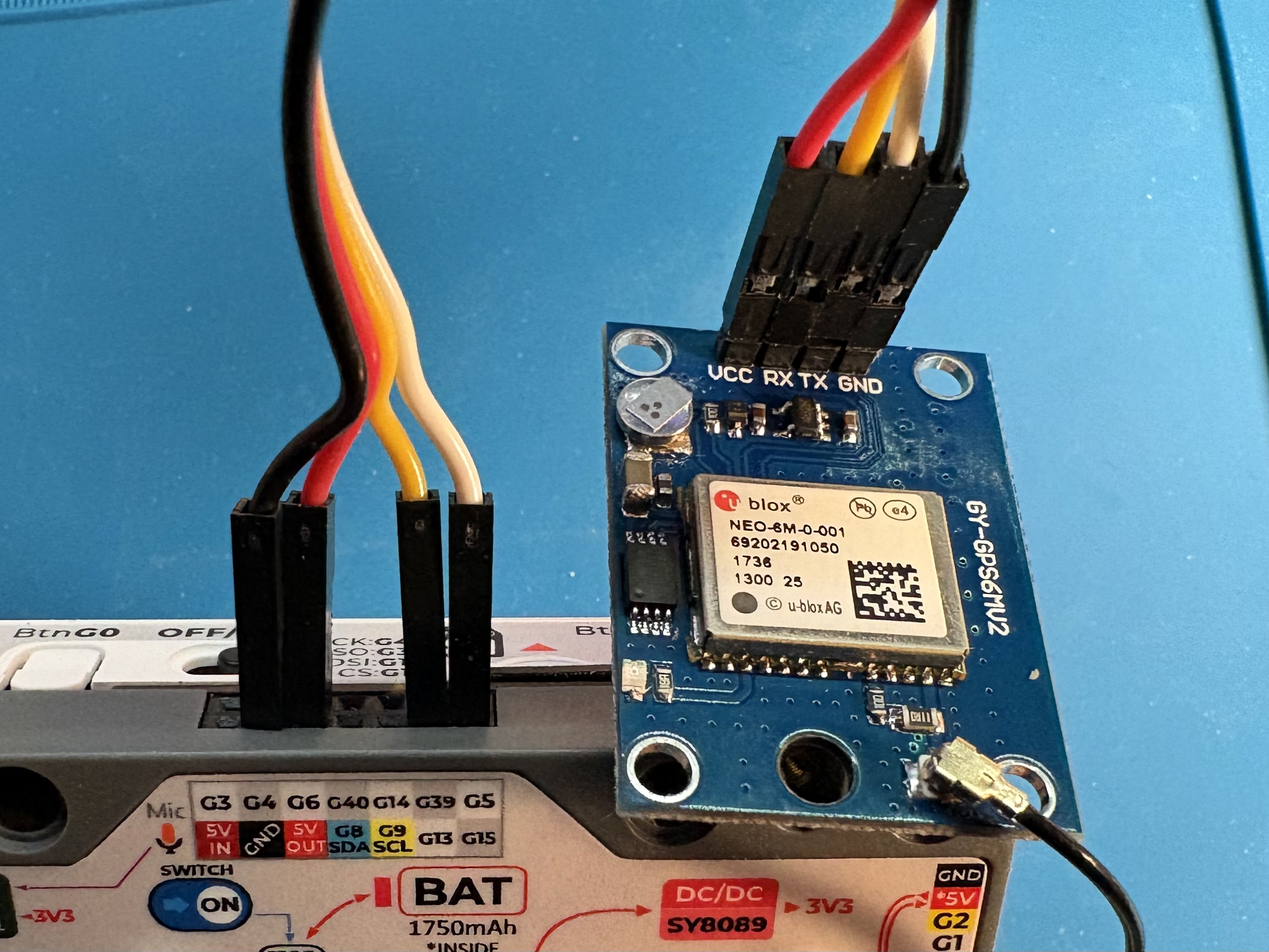

Wiring Diagram#

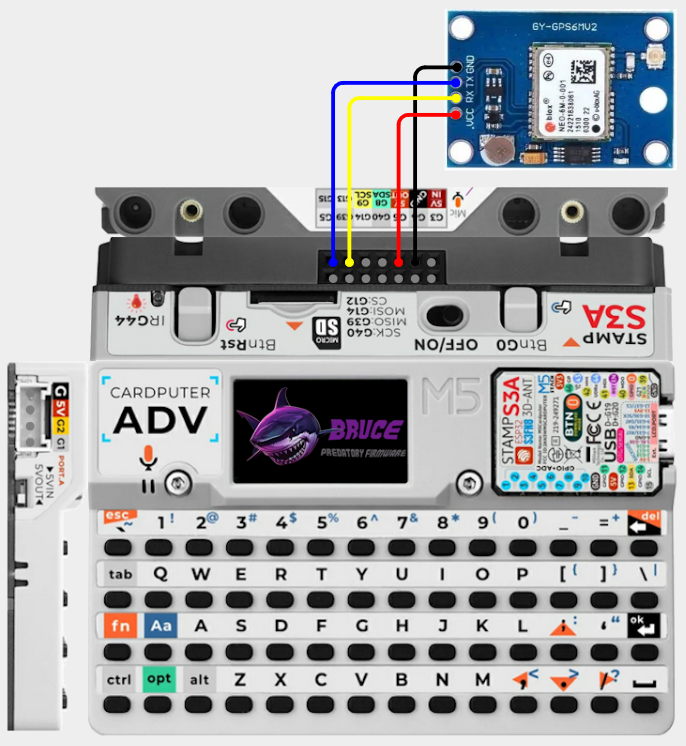

This shows wiring for the default pins you can wire up using the alternative pins using the Cardputer diagram.
