Cardputer Adv - W5500 Ethernet#
Items Needed#
W5500#
Pins#
| W5500 | Cardputer |
|---|---|
| GND - 1 | GND |
| SCLK - 2 | G40 |
| INT - 3 | G2 |
| SCS - 4 | G1 |
| RST - 5 | Not Connected |
| MOSI - 6 | G14 |
| GND - 7 | Not Connected |
| MISO - 8 | G39 |
| 5V - 9 | 5V OUT |
| 3V3 - 10 | Not Connected |

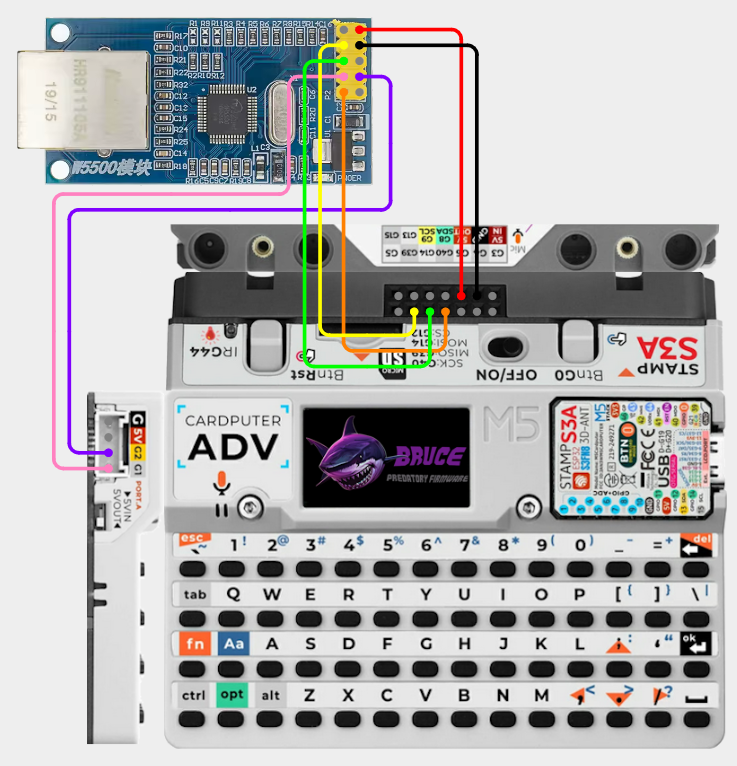

Wiring Diagram#
W5500 - Mini#
Warning
The W5500 Mini requires 3.3V power and is not 5V tolerant. You will need a Micro SD Sniffer to expose the 3.3V
Pins#
| W5500 | Cardputer Adv / SD Sniffer |
|---|---|
| GND - 1 | GND |
| 3V3 - 2 | VCC (on SD Sniffer) |
| 3V3 - 3 | Not Connected |
| NC - 4 | Not Connected |
| RST - 5 | Not Connected |
| MISO - 6 | G39 |
| INT - 7 | G2 |
| CS - 8 | G1 |
| SCLK - 9 | G40 |
| MOSI - 10 | G14 |
| GND - 11 | GND |
| GND - 12 | GND |

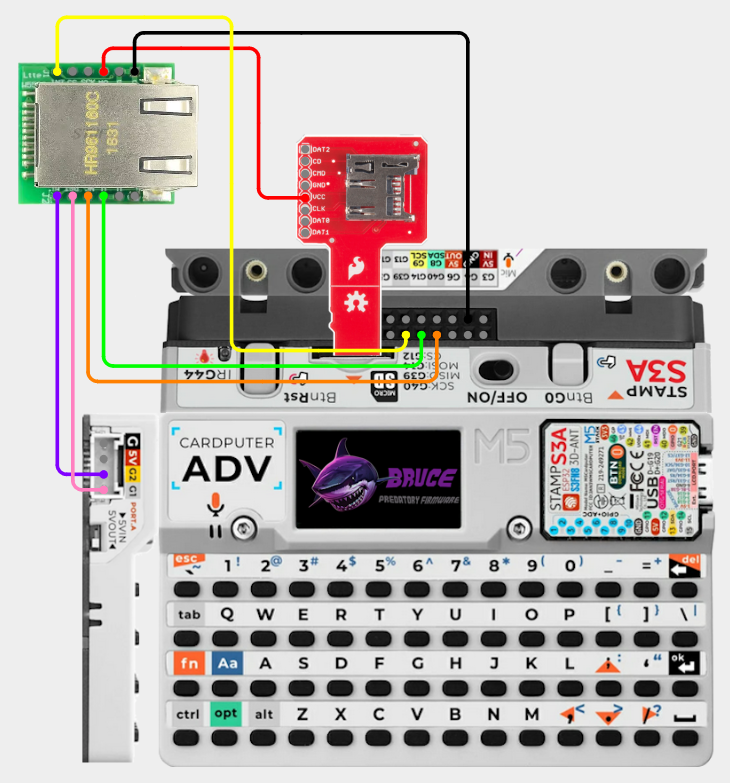

Wiring Diagram#
