M5StickC - CC1101/NRF24#
Items Needed#
Shared SPI#
Info
Please ensure you select Shared SPI
CC1101: RF -> Config -> RF Module -> CC1101 (Shared SPI)
NRF24: NRF24 -> Config Pins -> NRF24 (Shared SPI)
Pins#
| CC1101/NRF | M5StickC |
|---|---|
| GND - 1 | GND |
| VCC - 2 | 3V3 |
| GDO0 - 3 | G32 |
| CSN - 4 | G33 |
| SCK - 5 | G0 |
| MOSI - 6 | G26 |
| MISO/GDO1 - 7 | G36/G25 |
| DGO2 - 8 | Not Connected |

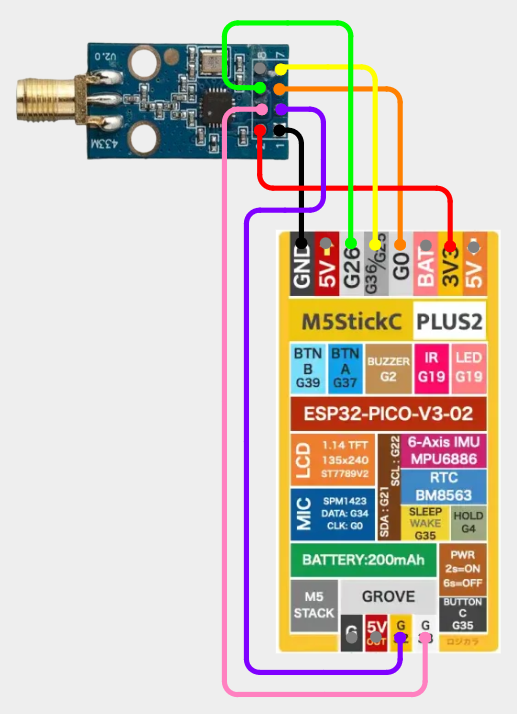

Wiring Diagram#
The diagram shows a CC1101, the wiring is the same for an NRF24.
Legacy SPI#
Info
Please ensure you select Legacy SPI
CC1101: RF -> Config -> RF Module -> CC1101 (Legacy SPI)
NRF24: NRF24 -> Config Pins -> NRF24 (Legacy SPI)
Pins#
| CC1101/NRF | M5StickC |
|---|---|
| GND - 1 | GND |
| VCC - 2 | 3V3 |
| GDO0 - 3 | G36/G25 |
| CSN - 4 | G26 |
| SCK - 5 | G0 |
| MOSI - 6 | G32 |
| MISO/GDO1 - 7 | G33 |
| DGO2 - 8 | Not Connected |

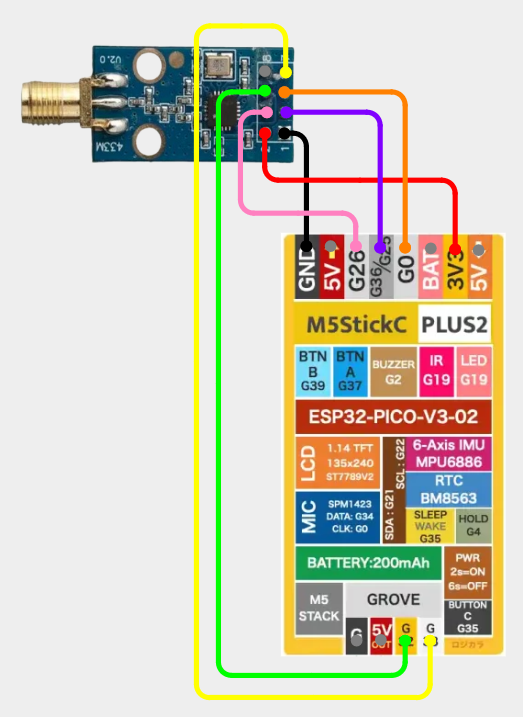

Wiring Diagram#
The diagram shows a CC1101, the wiring is the same for an NRF24.
