M5StickC - CH9329 USB HID#

Items Needed#

CH9329

Pins#

CH9329	M5StickC
5V - 1	5V
TX - 2	G33
RX - 3	G32
GND - 4	GND

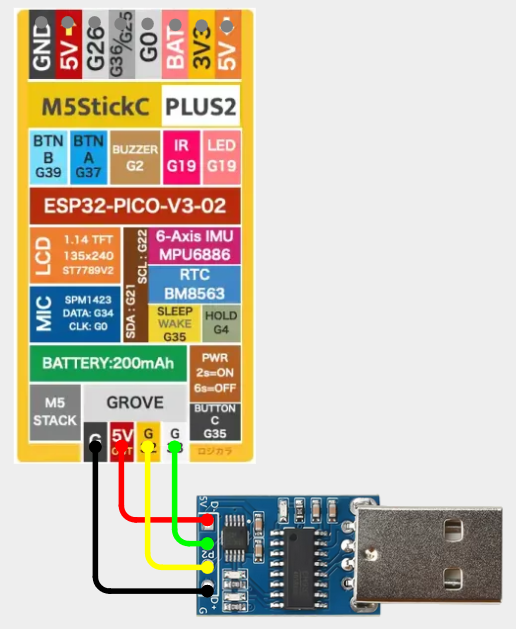

Wiring Diagram#

View on Cirkit Designer
