M5StickC - SD Card#

Items Needed#

SD Card Module

Pins#

SD Card Module	M5StickC
3V3 - 1	3V3
CS - 2	GND
MOSI - 3	G26
CLK - 4	G0
MISO - 5	G36/G25
GND - 6	GND

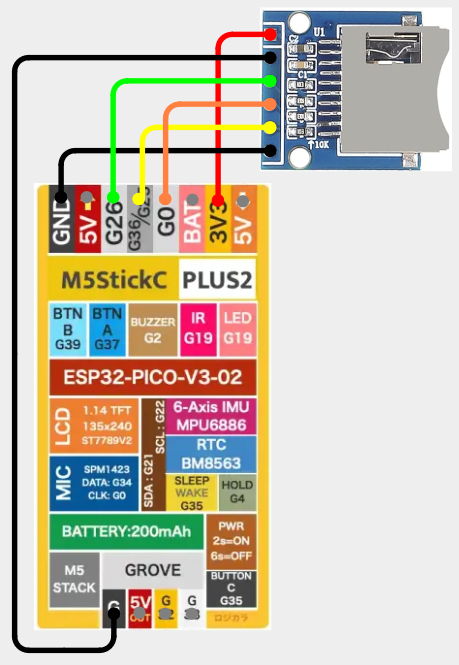

Wiring Diagram#

View on Cirkit Designer
