M5StickC - W5500 Ethernet
Items Needed
W5500
Pins
| W5500 |
M5StickC |
| GND - 1 |
GND |
| SCLK - 2 |
G0 |
| INT - 3 |
G36/G25 |
| SCS - 4 |
G26 |
| RST - 5 |
Not Connected |
| MOSI - 6 |
G32 |
| GND - 7 |
Not Connected |
| MISO - 8 |
G33 |
| 5V - 9 |
Not Connected |
| 3V3 - 10 |
3V3 |

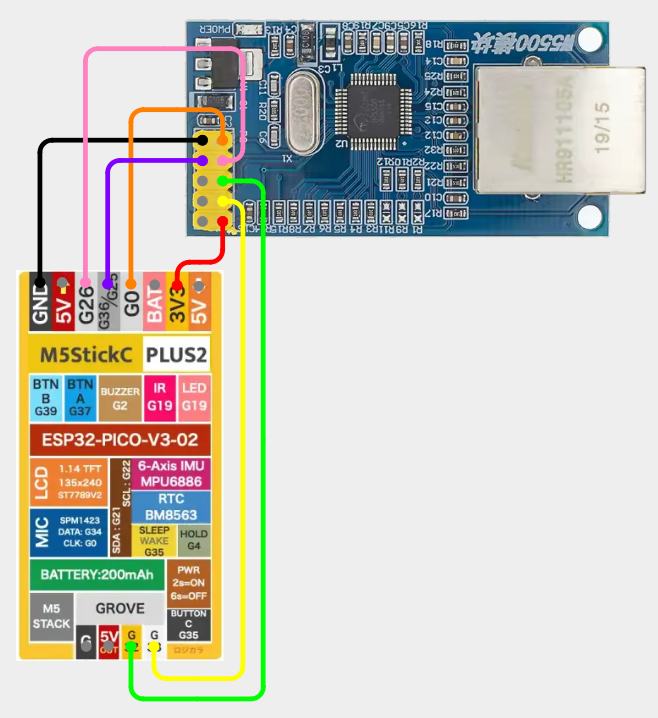

Wiring Diagram
View on Cirkit Designer

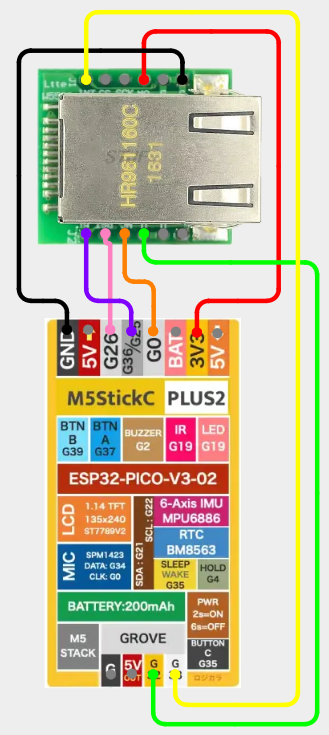

W5500 - Mini
Pins
| W5500 |
M5StickC |
| GND - 1 |
GND |
| 3V3 - 2 |
3V3 |
| 3V3 - 3 |
Not Connected |
| NC - 4 |
Not Connected |
| RST - 5 |
Not Connected |
| MISO - 6 |
G33 |
| INT - 7 |
G36/G25 |
| CS - 8 |
G26 |
| SCLK - 9 |
G0 |
| MOSI - 10 |
G32 |
| GND - 11 |
GND |
| GND - 12 |
GND |
Wiring Diagram
View on Cirkit Designer
