M5StickS3 - CC1101#
Items Needed#
Info
Please ensure you select CC1101
CC1101: RF -> Config -> RF Module -> CC1101
Pins#
| CC1101 | M5StickS3 |
|---|---|
| GND - 1 | GND |
| VCC - 2 | 3V3 |
| GDO0 - 3 | G3 |
| CSN - 4 | G2 |
| SCK - 5 | G5 |
| MOSI - 6 | G6 |
| MISO/GDO1 - 7 | G4 |
| DGO2 - 8 | Not Connected |

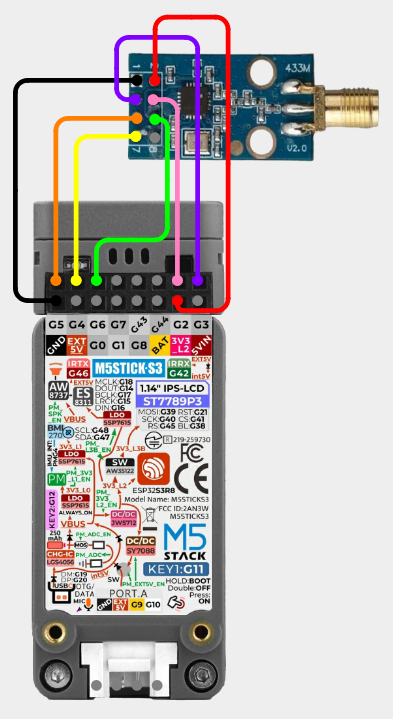

Wiring Diagram#
