M5StickS3 - NRF24#

Items Needed#

NRF24

Pins#

NRF24	M5StickS3
GND - 1	GND
VCC - 2	3V3
GDO0 - 3	G7
CSN - 4	G8
SCK - 5	G5
MOSI - 6	G6
MISO/GDO1 - 7	G4
DGO2 - 8	Not Connected

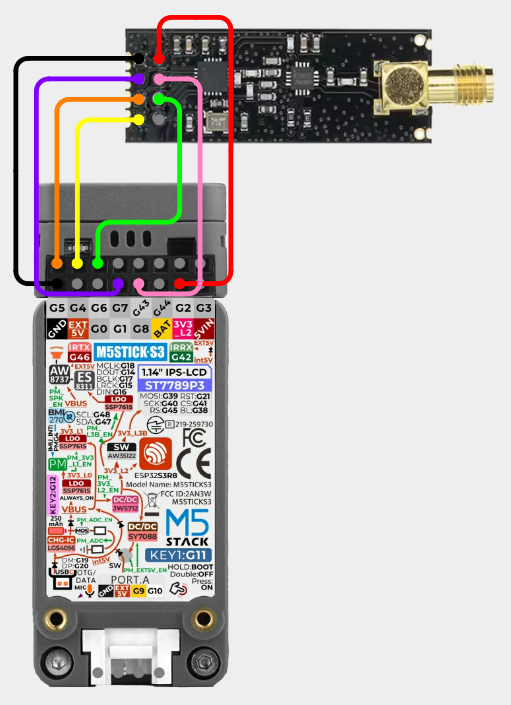

Wiring Diagram#

View on Cirkit Designer
