M5StickS3 - SD Card#

Items Needed#

SD Card Module

Pins#

SD Card Module	M5StickS3
3V3 - 1	3V3
CS - 2	G7
MOSI - 3	G6
CLK - 4	G5
MISO - 5	G4
GND - 6	GND

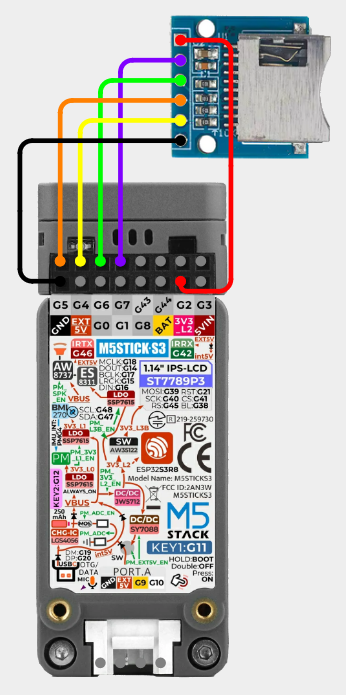

Wiring Diagram#

View on Cirkit Designer
