M5StickS3 - W5500 Ethernet#
Items Needed#
W5500#
Pins#
Info
In Bruce 1.14+ you will need to set the pins for CS and INT (CE/GDO0) in the Dev Mode menu.
| W5500 | M5StickS3 |
|---|---|
| GND - 1 | GND |
| SCLK - 2 | G5 |
| INT - 3 | G1 |
| SCS - 4 | G8 |
| RST - 5 | Not Connected |
| MOSI - 6 | G6 |
| GND - 7 | Not Connected |
| MISO - 8 | G4 |
| 5V - 9 | Not Connected |
| 3V3 - 10 | 3V3 |

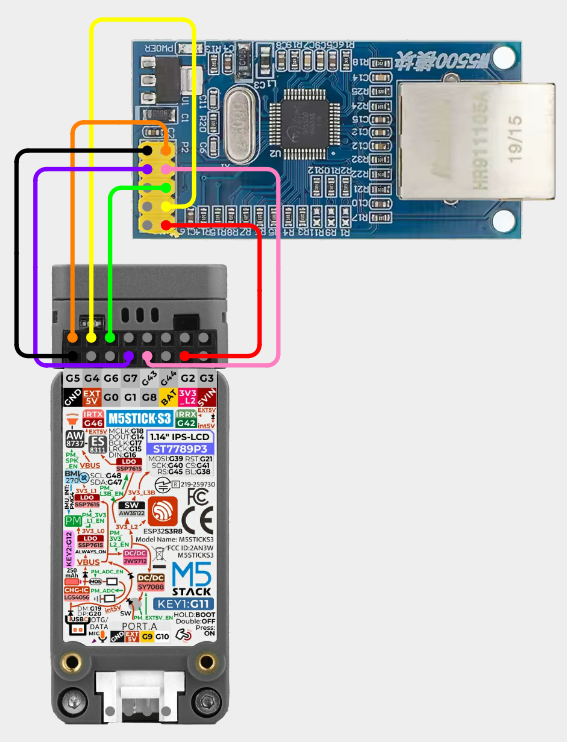

Wiring Diagram#
W5500 - Mini#
Pins#
Info
In Bruce 1.14+ you will need to set the pins for CS and INT (CE/GDO0) in the Dev Mode menu.
| W5500 | M5StickS3 |
|---|---|
| GND - 1 | GND |
| 3V3 - 2 | 3V3 |
| 3V3 - 3 | Not Connected |
| NC - 4 | Not Connected |
| RST - 5 | Not Connected |
| MISO - 6 | G4 |
| INT - 7 | G1 |
| CS - 8 | G8 |
| SCLK - 9 | G5 |
| MOSI - 10 | G6 |
| GND - 11 | GND |
| GND - 12 | GND |

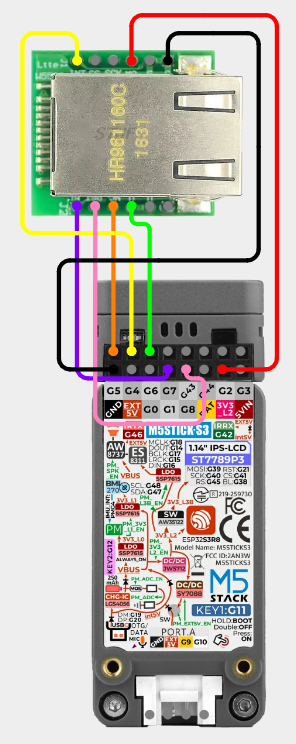

Wiring Diagram#
