T-Embed - W5500 Ethernet
Items Needed
W5500
Pins
| W5500 |
T-Embed |
| GND - 1 |
GND (on SD Sniffer) |
| SCLK - 2 |
CLK (on SD Sniffer) |
| INT - 3 |
43 |
| SCS - 4 |
44 |
| RST - 5 |
Not Connected |
| MOSI - 6 |
CMD (on SD Sniffer) |
| GND - 7 |
Not Connected |
| MISO - 8 |
DAT0 (on SD Sniffer) |
| 5V - 9 |
Not Connected |
| 3V3 - 10 |
VCC (on SD Sniffer) |

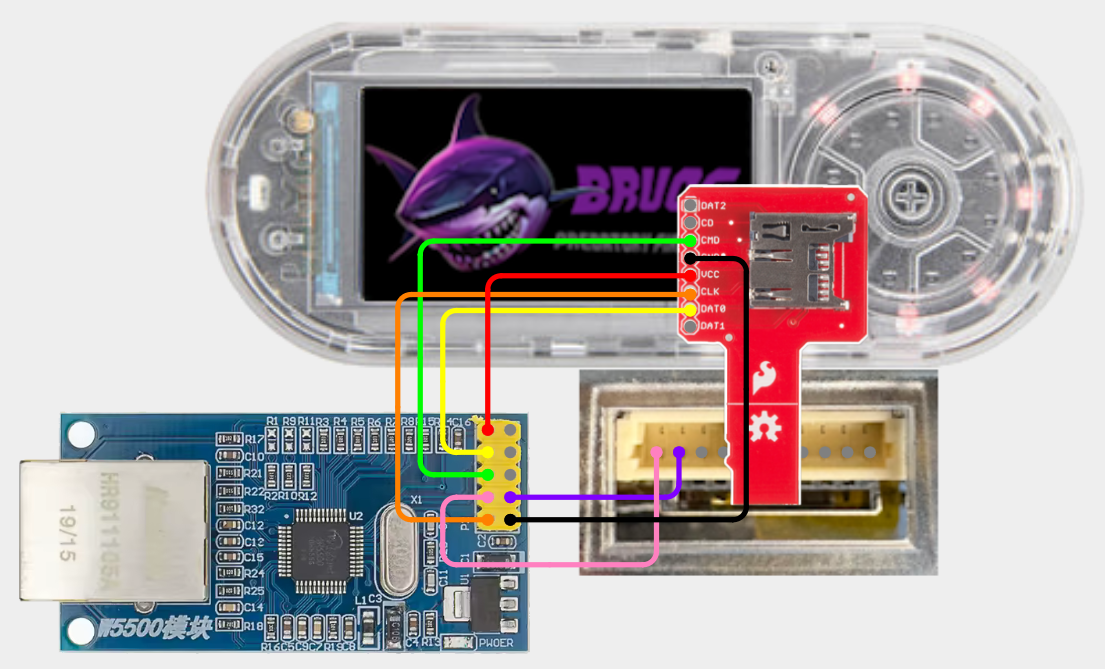

Wiring Diagram
View on Cirkit Designer
W5500 - Mini
Pins
| W5500 |
T-Embed |
| GND - 1 |
GND (on SD Sniffer) |
| 3V3 - 2 |
VCC (on SD Sniffer) |
| 3V3 - 3 |
Not Connected |
| NC - 4 |
Not Connected |
| RST - 5 |
Not Connected |
| MISO - 6 |
DAT0 (on SD Sniffer) |
| INT - 7 |
43 |
| CS - 8 |
44 |
| SCLK - 9 |
CLK (on SD Sniffer) |
| MOSI - 10 |
CMD (on SD Sniffer) |
| GND - 11 |
GND |
| GND - 12 |
GND |
Wiring Diagram
View on Cirkit Designer
