GPS#

Add GPS support to a device. This can be used for Wardriving and GPS Tracking.

Configuration#

You may need to change the Baudrate and GPS Pins configuration depending on the GPS module and device you are using.

Info

Since the GPS modules use UART/serial you need to ensure you swap the TX/RX pins when making the connections. TX -> RX and RX -> TX

Baud Rate#

GPS -> Config -> Baudrate

  • 9600
  • 19200
  • 38400
  • 57600
  • 115200

GPS Pins#

GPS -> Config -> GPS Pins

You can set the RX and TX pins away from their defaults if required.

Modules#

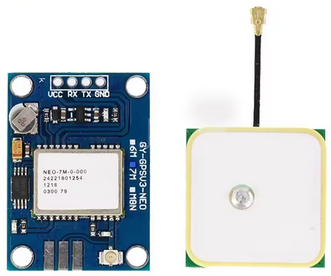

NEO-6M#

Default Baud Rate: 9600

Find on AliExpress

NEO-6M

ATGM336H#

Find on AliExpress

Default Baud Rate: 9600

ATGM336H

M5Stack GPS Module#

Find on M5Stack Store

Default Baud Rate: 9600

M5Stack GPS Module

Devices/Wiring Diagrams#

M5Stack StickC - GPS#

M5StickS3 - GPS#

M5Stack Cardputer - GPS#

M5Stack Cardputer Adv - GPS#

Lilygo T-Embed CC1101 - GPS#

CYD - GPS#
